BundleUp uses an OAuth-style authorization flow to connect external accounts and produce a connection ID that you can use for all proxy requests. The flow mirrors standard OAuth patterns using a client ID and redirect URI. BundleUp handles provider-specific OAuth logic and credential storage on your behalf.

​
Authorization flow

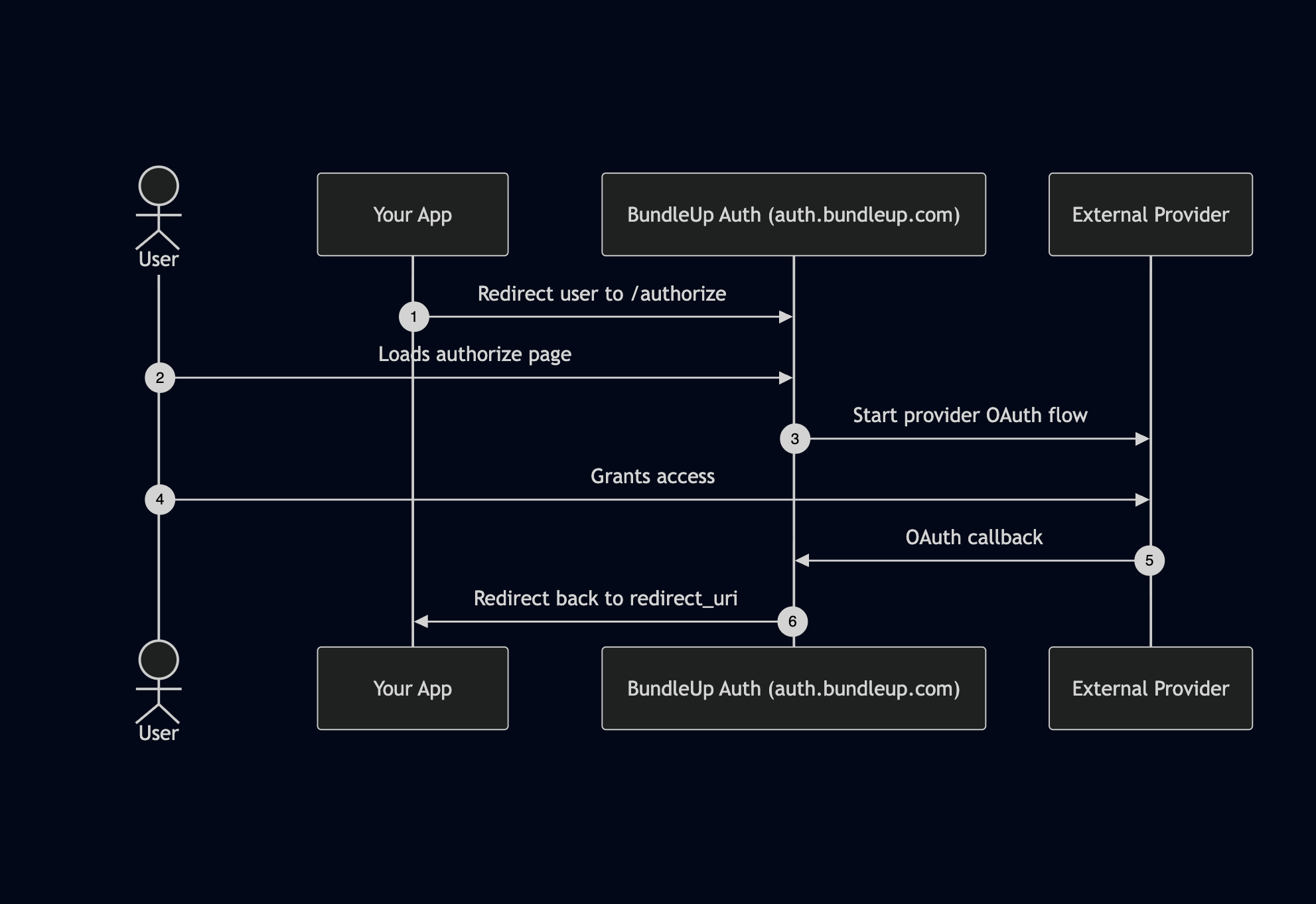

The authentication flow consists of three steps. Diagram

​
Step 1: Redirect the user to BundleUp

Your application redirects the user to BundleUp’s authorization endpoint.
https://auth.bundleup.com/authorize
?client_id=YOUR_CLIENT_ID
&integration_id=INTEGRATION_ID
&redirect_uri=YOUR_CALLBACK_URL
&external_id=YOUR_EXTERNAL_ID
​
client_id
string
required
Identifies your BundleUp application.
​
integration_id
string
required
Specifies which provider the user is connecting.
​
redirect_uri
string
required
Where the user will be sent after authorization completes
​
external_id
string
User-defined reference that BundleUp stores on the connection and returns after authorization.

​
Step 2: User authorizes with the provider

BundleUp initiates the OAuth flow with the selected provider. The user is redirected to the provider’s consent screen, where they grant access to their account. BundleUp completes the OAuth exchange and securely stores the resulting credentials. OAuth tokens are never exposed to your application.

​
Step 3: Redirect back with connection details

Once authorization completes, BundleUp redirects the user back to your redirect_uri.
?connection_id=conn_abc123
&integration_id=integration_xyz
&external_id=YOUR_EXTERNAL_ID
The redirect includes the following query parameters:
​
connection_id
string
Uniquely identifies the connected external account.
​
integration_id
string
Identifies which integration the connection belongs to.
​
external_id
string
The same value you provided at the start of the flow.

​
After authorization

Once you receive the connection_id, the authentication flow is complete. You use the connection ID for all future proxy or Unified API requests. OAuth does not need to be repeated unless the connection is revoked or expires. All API execution happens from your backend using your BundleUp API key.

​
Security model

Your BundleUp API key is never used in the browser and is never part of the authorization redirect. It is required only for server-to-server API requests. The authorization flow relies on a client ID, redirect URI, and external ID, all of which are safe to expose publicly.

​
Mental model

Think of this flow exactly like OAuth. BundleUp acts as the authorization server.
The provider acts as the resource owner.
The connection ID is used for execution, and the external ID is used for your internal reference. Once you have a connection ID, authentication is complete.
